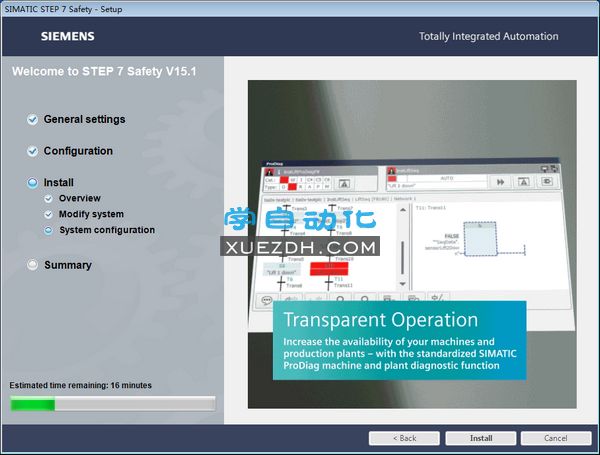

西门子博途(TIA V15.1)STEP7 Safety V15.1 软件下载

  • 33,418
  • 阅读模式

SIMATIC STEP7 Safety V15.1 适用于 TIA Portal V15.1,是一款高性能附加软件包,可对故障安全 S7 控制器进行编程.
SIMATIC STEP7 Safety V15.1 适用于所有故障安全型 TIA SIMATIC 控制器类别(S7-1500、S7-1200、S7-1500 软件控制器、S7-300、S7-400 和 WinAC)。

SIMATIC STEP7 Safety V15.1 新功能

New fail-safe CPU-CPU communication "Flexible F-Link"

With STEP 7 Safety V15.1, a new fail-safe CPU-CPU communication "Flexible F-Link" is available for the fail-safe S7-1200 and S7-1500 CPUs. This enables fail-safe data to be easily exchanged between two fail-safe CPUs as a fail-safe array using standard communication mechanisms.

西门子博途(TIA V15.1)STEP7 Safety  V15.1 软件下载

Flexible F-Link offers several advantages for exchanging fail-safe data:

Grouping of the fail-safe data to be transferred into F-conformant PLC data types (UDTs)
Up to 100 bytes of fail-safe data per UDT

Support of fail-safe data types

Easy parameter assignment and automatic generation of fail-safe communication DBs
Transfer of fail-safe data with standard communication blocks even across network boundaries
F-runtime group communication for F-CPUs 1200/1500

System-integrated and worldwide sufficiently unique F-Communication UUID

Separate F-communication address signature for easy recognition of changes of the F-communication UUID

西门子博途(TIA V15.1)STEP7 Safety  V15.1 软件下载

F-OB preprocessing and postprocessing

To simplify configuring and for easy-to-follow timing, especially in the context of fail-safe communication using Flexible F-Link, STEP 7 Safety Version V15.1 provides the option of placing standard blocks around the F-runtime groups for the purpose of preprocessing and postprocessing process values.

Variable communication ID (DP_DP_ID)

Starting in Version V15.1, STEP 7 Safety provides the option of assigning variables instead of constants to the communication IDs (DP_DP_IDs) needed for the SENDDP and RCVDP blocks. This allows use of safety programs with the same collective F-signature in systems with a variety of identical I-devices. The variable communication ID thus enables simplified commissioning, maintenance and project management.

New openness functionalities

Reading/configuring of I-parameters of the ET 200SP F-IOs

Consistent station upload

HW/SW comparison (offline/offline)

Import/export of consistent F-blocks and F-conformant PLC data types (UDT)

Simulation mode for SENDDP / RCVDP during S7-PLCSIM operation

2015 安全等级为 SIL 3(安全完整性等级,IEC 61508:2010)或 PL e 级(性能等级,13849-1:2015 标准)

SIMATIC STEP7 Safety V15.1下载链接

西门子博途(TIA V15.1)STEP7 Safety  V15.1 软件下载微信搜索或扫码关注
 学自动化 公众号
回复   000279
获取资源下载链接
